Lorch MicorStick 200 | Electrode welder
Lorch MicorStick 200 Electrode Welding Inverter
Electrode welding inverter up to 200A, fully resonant welding inverter with MicorBoost technology, electrode preselection and TIG function.
-
Electrode welding inverter
CEL-capable, fully resonant welding inverter with MicorBoost technology, electrode preselection and TIG function with ContacTIG on lines up to 200 m long and in generator mode.
Rugged featherweight
A fall from the workbench or loading edge? That happens to welding systems like this an average of four times in a lifetime! Thanks to its 80 cm drop resistance, the 4.9 kg MicorStick 200 can easily handle it. So you can always rely on its welding performance.
Long-distance champion
Verlängerungsleitungen, niedrige und schwankende Netzspannung, Generatorbetrieb: Mit der MicorStick 200 geht das Schweißen auch mit bis zu 200 Meter langen Verlängerungskabeln und trotz abfallender Spannung einfach weiter. Erst beim Erreichen einer Negativtoleranz von 40 % schaltet sie ab.
Safe and compliant to standards
Do not compromise. The IP 23S, the S mark and the tested CE conformity according to European standards as well as permanent quality assurance in Germany ensure maximum safety in the workshop and on assembly.
Long-lasting welding quality
With the MicorStick 200, damaged connections, defective insulation, kinked welding cables and scorched contact surfaces are a thing of the past: The thick 25 mm² welding cables and the industrial-grade, large 13 mm Ø welding sockets of the MicorStick 200 make all the difference. For more safety and better welding quality.

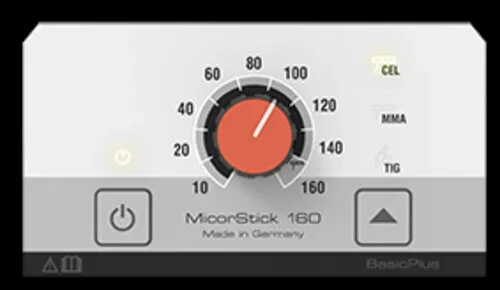

BasicPlus operating panel:
"3 steps and weld" operating concept
Simple one-button operation
Stepless current adjustment
Electrode preselection (basic, rutile and CEL) for optimum welding parameters

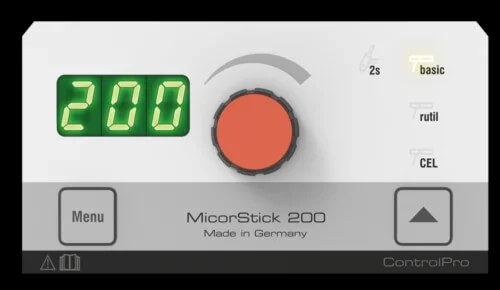

ControlPro operating panel:
"3 steps and weld" operating concept
Simple one-button operation
Stepless current adjustment
Ampere accurate digital display
Electrode preselection (basic, rutile and CEL) for optimum welding parameters
Submenu for individual adjustments of system settings
-
Details Data Mains voltage: 400V 3Ph Welding area electrodes welding: 10-200A Duty cycle electrodes welding 100%: 130A TIG DC welding range: 15-200A Duty cycle TIG DC welding 100%: 130A Weldable electrodes: 1,5 – 5,0 mm Dimensions: 360 x 130 x 215 mm Weight machine (LxWxH): 6,3kg -
