Lorch MicorStick 180 | electrode welder

Lorch MicorStick 180 Electrode Welding Inverter


Electrode welding inverter up to 180A, fully resonant welding inverter with MicorBoost technology, electrode preselection and TIG function.


Product-ID: lorch-micorstick-180

Category: Electrodes welding

Tags: Lorch

Share:

  • Electrode welding inverter

    CEL-capable, fully resonant welding inverter with MicorBoost technology, electrode preselection and TIG function with ContacTIG on lines up to 200 m long and in generator mode.

    Rugged featherweight

    A fall from the workbench or loading edge? That happens to welding systems like this an average of four times in a lifetime! Thanks to its 80 cm drop resistance, the 4.9 kg MicorStick 180 can easily handle it. So you can always rely on its welding performance.

    Long-distance champion

    Extension cables, low and fluctuating mains voltage, generator operation: With the MicorStick 180, welding simply continues even with extension cables up to 200 meters long and despite dropping voltage. It only switches off when a negative tolerance of 40 % is reached.

    Safe and compliant to standards

    Do not compromise. The IP 23S, the S mark and the tested CE conformity according to European standards as well as permanent quality assurance in Germany ensure maximum safety in the workshop and on assembly.

    Long-lasting welding quality

    With the MicorStick 180, damaged connections, defective insulation, kinked welding cables and scorched contact surfaces are a thing of the past: The thick 25 mm² welding cables and the industrial-grade, large 13 mm Ø welding sockets of the MicorStick 180 make all the difference. For more safety and better welding quality.

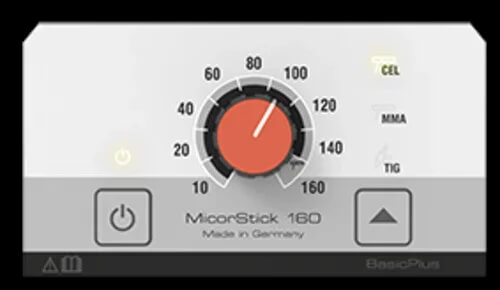

    BasicPlus operating panel:

    • "3 steps and weld" operating concept

    • Simple one-button operation

    • Stepless current adjustment

    • Electrode preselection (basic, rutile and CEL) for optimum welding parameters

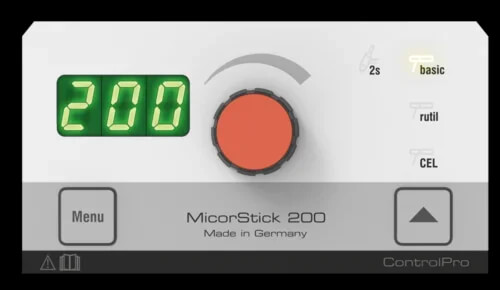

    ControlPro operating panel:

    • "3 steps and weld" operating concept

    • Simple one-button operation

    • Stepless current adjustment

    • Ampere accurate digital display

    • Electrode preselection (basic, rutile and CEL) for optimum welding parameters

    • Submenu for individual adjustments of system settings

  • Details Data
    Mains voltage: 230V
    Welding area electrodes welding: 10-180A
    Duty cycle electrodes welding 100%: 120A
    TIG DC welding range: 5-200A
    Duty cycle TIG DC welding 100%: 120A
    Weldable electrodes: 1,5 – 4,0 mm
    Dimensions: 360 x 130 x 215 mm
    Weight machine (LxWxH): 6,2kg
  • Download Lorch MicorStick Series Datasheet

    Download
