Lorch MicorMIG 500

Lorch MicorMIG 500 MIG-MAG welder


MicorBoost technology lets you weld even more efficiently with higher efficiency in the MIG-MAG range.


  • Innovative and powerful welding machines from Lorch

    Perfect welding results with MicorMig 500

    Performance plus thanks to MicorBoost. MicorBoost technology enables you to weld even more efficiently with higher efficiency in the MIG-MAG range. You also have higher voltage reserves at your disposal, which you need for perfect electrode welding - including CEL and special electrodes.

    The innovative and patented MicorBoost technology ensures maximum power and voltage reserve in the arc. This gives you optimum welding properties for all sheet metal and medium and heavy steel work - both with mixed gas and under CO2. The result: outstanding welding results on steel, stainless steel and aluminum.

    Compliant and combinable:

    Weld in compliance with EN1090 easily thanks to the WPS booklet. This saves you time-consuming and cost-intensive individual testing of your welding results. The booklet includes independently certified welding instructions for all relevant standard welding processes. With the MicorMIG 350, the parameter sets are also conveniently available via NFC job card.

    Future-proof and flexible:

    Expand your system at any time with exactly the functionalities you need: Thanks to NFC functionality, the MicorMIG 400 is fully upgradeable. This means you can retrofit additional welding processes, welding programs as well as work-simplifying functions with NFC cards at any time - offline and without external support.

    Quality assurance thanks to authorization concept:

    Thanks to NFC technology, it is also possible to set up a personalized authorization system for operating the welding system. With the MicorMIG 400, NFC authorization cards can be used to ensure that only selected welders are allowed to adjust corresponding parameters. A time lock for the end of the working day additionally prevents unauthorized work on the device.

    Excellent price-performance ratio:

    The MicorMIG 400 - your easy switch to a continuously adjustable welding system. Benefit from the optimum welding properties of the MicorMIG 400 at an outstanding price/performance ratio. Quite simply: the better alternative to the conventional transformer system.

    Energy efficiency thanks to technology:

    The MicorMIG 400 combines robust performance with efficient inverter technology and stand-by functionality. This allows you to reduce your costs while achieving a perfect welding result.

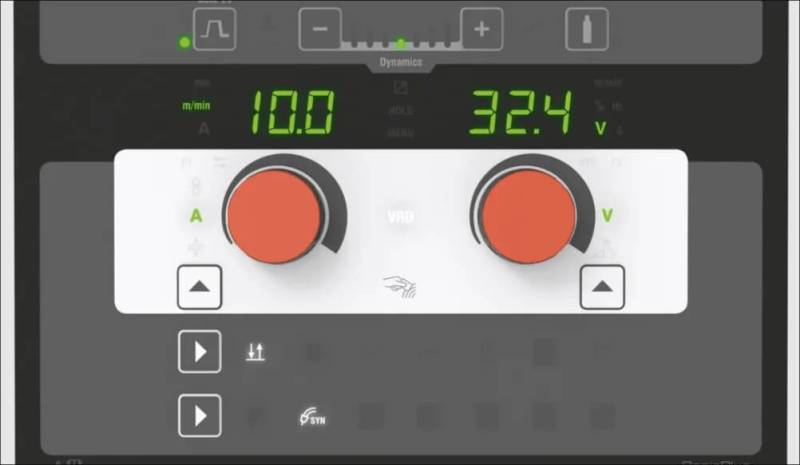

    BasicPlus control panel:

    • "3 steps and weld" operating concept

    • Digital volt-ampere display

    • Stepless current adjustment

    • 7-step arc dynamics control

    • Automatic adjustment (synergy function)

    • Simple process and welding program selection

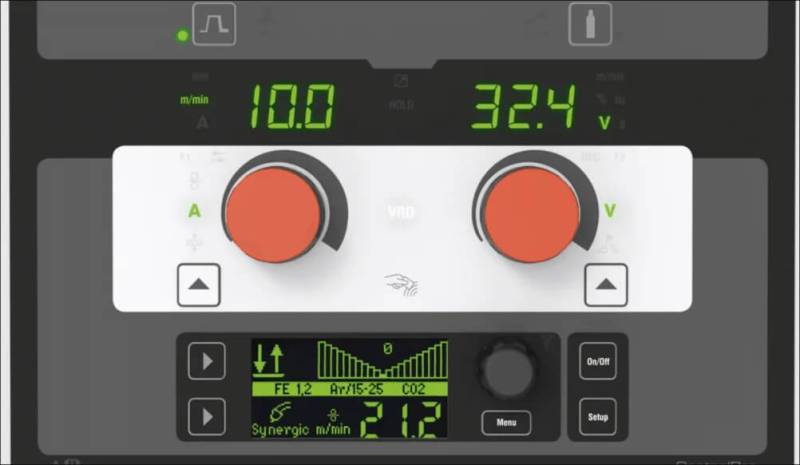

    ControlPro Control panel:

    • "3 steps and weld" operating concept

    • Digital volt-ampere display

    • Stepless current adjustment

    • 21-step arc dynamics control

    • Automatic setting (synergy function)

    • Easy process and welding program selection

    • OLED graphic display - for display of the 3rd main parameter

    • Tiptronic job memory for 100 welding tasks

  • Details Data
    Mains voltage: 400V 3Ph
    Welding range: 25-500A
    Duty cycle 100%: 370A
    Feeding unit: 4 Roller drive (2 driven)
    Weldable wires steel: 0,6 – 1,6 mm
    Weldable wires alu: 1,0 – 1,6 mm
    Dimensions (LxWxH): 880 x 490 x 855 mm
    Weight machine: 64kg
  • Download data sheet Lorch Micor MIG series

    Download
