Lorch M-Pro 200 CuSi

Soldering & welding machine

With the Lorch M-Pro 200 CuSi, you can both solder and weld perfectly. The welding current already starts from 15 amps for sheets from 0.5 mm.

  • The Lorch M-Pro 200 CuSi: Welding & brazing with one device

    Efficiency improvement:

    Thanks to the automatic synergy setting, you get perfect welds quickly, easily and reliably - without any teach-in or transmission errors. This not only saves time and money, but also ensures consistently high welding quality.

    Maximum safety at work:

    With the M-Pro 200 CuSi products, you effectively protect welding professionals and ensure maximum safety at work with three special features:

    1. angled torch connection

    2. double gas cylinder safety device

    3. roll-away lock total stop roller

    Robust housing:

    The M-Pro housing is extremely robust and easy to maneuver thanks to sturdy handles - ideal for use in the workshop. The top of the housing is also perfect as a storage surface.

    Interior illumination:

    The interior lighting improves visibility during wire threading in the easily accessible wire feed chamber of the M-Pro 200 CuSi. This means that the welder can work well at all times - regardless of whether it is light or dark.

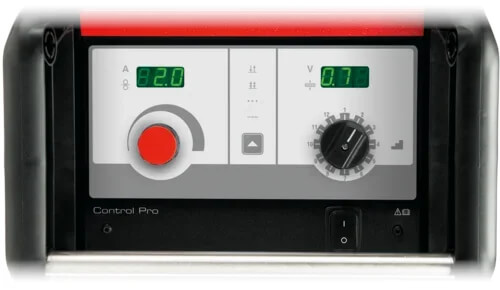

    ControlPro operating panel:

    • "3 steps and weld" operating concept

    • Current setting in 12 steps

    • Automatic setting (synergy function)

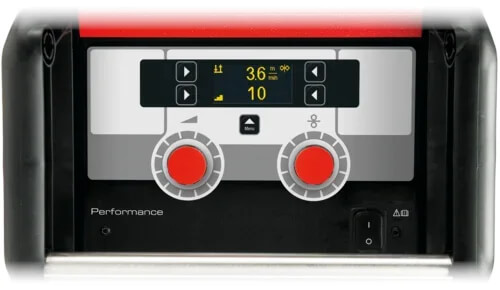

    Control Panel Performance:

    • "3 steps and weld" operating concept

    • Current setting in 21 finely adjustable steps

    • Automatic setting (synergy function)

    • OLED graphic display

    • Tiptronic job memory for 10 welding tasks

  • Details Data
    Mains voltage: 400V 3~
    Fuse: 16A
    Shift steps: 12/21 steps (ControlPro/Performance)
    Welding current: 15-200A
    Duty cycle 100%: 100A
    Wire feed: 4 rollers
    Weldable wires steel: 0,6 – 1,0 mm
    Weldable wires aluminum: 0,8 – 1,2 mm
    Weldable wires CuSI: 0,8 – 1,0 mm
    Dimensions: 880 x 400 x 755 mm
    Net weight: 68kg
  • Download Lorch M Pro Series Datasheet
