Lorch T 300 | TIG welder

Lorch T300 TIG welding machine


Despite the compact housing, it also offers a high level of functional diversity. Thanks to high-end technology, perfect HF ignition and powerful fast pulsing in the thin sheet area, the T series convinces with optimal welding performance.


  • DC and AC/DC version available

    Stable arc - in DC and AC

    The T series is a powerhouse in TIG welding. It is an all-rounder and at home everywhere: in the food or chemical industry, in pipeline, machine or metal construction as well as in the trades. Its low weight makes it particularly suitable for mobile use on construction sites and for service jobs or hard-to-reach repair welds.

    Despite its compact housing, it also offers a high level of functional diversity. Thanks to high-end technology, perfect HF ignition and powerful fast pulsing in the thin sheet area, the T series convinces with optimal welding performance. With the integrated cooling unit connection for the WUK cooling unit, you can weld with it even more comfortably - and at higher outputs.

    Perfect aluminum welding thanks to AC version

    Aluminum TIG welding requires alternating current (AC). Since aluminum is a very good heat conductor, every millimeter of material thickness requires additional current. Material thicknesses of far more than 8 mm are no problem for the T 300 welders. In addition, the current shape in AC mode is optimized for maximum stability, very good cleaning effect of the aluminum oxide skin and reduced noise. The integrated automatic dome control also ensures perfect arc shaping.

    Enhanced welding quality thanks to MACS

    Das zusätzliche Sonderverfahren Lorch MACS (ModulatedACSystem) steigert die Schweißqualität durch eine gezielte Wärmeeinbringung. Besonders beim Verbinden von unterschiedlichen Materialdicken sorgt MACS für herausragende Ergebnisse

    Longevity

    The special coating of the electronics, the integrated air duct and the oversizing of the power components ensure optimum dust protection and a long service life.

    Weighing barely more than 16 kg, the T 300 is perfectly equipped for mobile use. The special crash protection secures the housing in the event of falls of up to 60 cm. The standard protective cover of the control panel and the integrated dust filter guarantee robustness and durability - even in rough assembly applications.

    Mobility on mounting

    The T 300 is so compact that it fits together with your TIG equipment in the optional assembly trolley. Safely stowed away, you simply pull the equipment including cables, tools, helmet and glove behind you in the case.

    Pulsing and fast pulsing up to 2 kHz

    The integrated pulse and fast pulse function up to 2 kHz is particularly well suited for processing thin welding sheets. It enables outstanding weld pool control and guarantees you perfect results - even for difficult welding tasks.

    Energy efficiency at full output

    The T 300 from Lorch has state-of-the-art power electronics with stand-by functionality. This allows you to reduce your costs and achieve a perfect welding result at the same time.

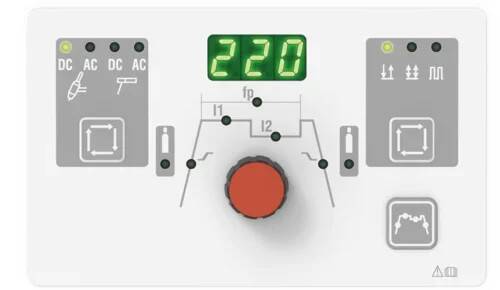

    BasicPlus operating panel:

    • "3 steps and weld" operating concept

    • Simple one-button operation

    • Stepless current adjustment

    • Ampere-precise digital display

    • User-oriented operator guidance via illuminated symbols and welding sequence control

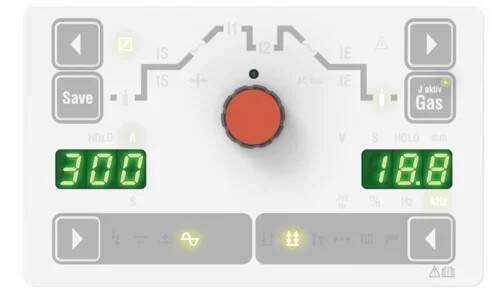

    ControlPro operating panel:

    • "3 steps and weld" operating concept

    • Simple one-button operation

    • Stepless current adjustment

    • Ampere-precise digital display

    • User-oriented operator guidance via luminous symbols and welding sequence control

    • Tiptronic job memory for 100 welding tasks

  • Details Data
    Mains voltage: 230V
    Welding range TIG AC/DC welding: 3-300A
    Duty cycle TIG AC/DC welding 100%: 200A
    Welding area electrodes welding: 10-200A
    Weldable electrodes: 1,5 – 5,0 mm
    Dimensions (LxWxH): 483 x 185 x 325 mm
    Weight machine (DC version): 14,5kg
    Weight machine (AC/DC version): 16,4kg
  • Download Lorch T Series Datasheet

    Download
