Lorch MX350 MIG-MAG welding machine
In combination with a separate wire feed case, the Lorch MX 350 is optimally suited for mobile MIG-MAG use. In addition, it is also TIG-, electrode- and CEL-capable and can thus be adapted to different tasks accordingly.
Category: Mig mag welding
Due to its robust and weatherproof housing with IP34 and a drop resistance of up to 60 cm height, the Lorch MX 350 is optimally equipped for mobile outdoor use.
Performance plus thanks to MicorBoost:
As soon as the current is reduced by external disturbances, significantly higher voltage reserves can be activated. The result is perfect electrode welding.
With switchable MIG-MAG synergy mode for excellent MIG-MAG welding properties, both with mixed gas and CO₂.
Multi-process and full flexibility thanks to MF-07 wire feed case:
In combination with the separate MF-07 wire feed case, the MX 350 is also perfectly suited for mobile use. The MF-07 ensures that you are up to all kinds of sheet metal and medium to heavy steel work.
And to keep you "on your toes" when welding, your case is designed for use with K 300 wire coils. In addition, it is also TIG, electrode and CEL capable and can thus be adapted to different tasks accordingly.

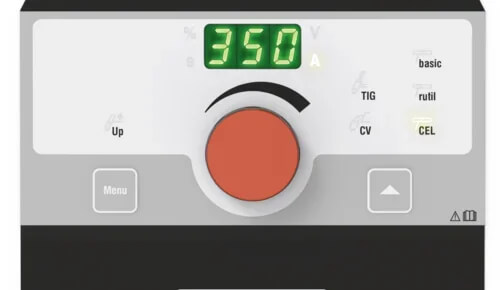

Basic control panel:
"3 steps and weld" operating concept
Simple one-button operation
Ampere accurate digital display
Electrode preselection (basic, rutile and CEL) for optimum welding parameters
Hotstart in submenu
Details Data Mains voltage: 400V 3Ph Welding range: 10-350A Duty cycle 100%: 230A Feeding unit: 4 Roller drive Weldable wires steel: 0,6 – 1,2 mm Weldable wires alu: 1,0 – 1,2 mm Dimensions: 515 x 185 x 400 mm Weight machine: 18,6kg
Download Lorch MX Series DatasheetDownload
